2.7 Lubricate Cables And Chassis

LUBRICATE CABLES AND CHASSIS                                                                                                   2.7

GENERAL                                                                     Consumable: SPECIAL PURPOSE GREASE (99857-97A)

                                                                  3.                      NOTE
Inspect and lubricate the following items according to General
(Page 2-3).                                                       HARLEY LUBE (94968-09) and are formulated to be
                                                                  compatible with the clutch cable lining. Use of other
If service is on muddy or dusty roads, clean and lubricate at     lubricants could damage clutch cable lining.
shorter intervals.
                                                                            Clutch cable: See CLUTCH CONTROL (Page 3-82).
LUBRICATION POINTS
                                                                            Consumable: HARLEY LUBE (94968-09)
     CONSUMABLE                   PART NUMBER                     4.        Clutch hand lever: See CLUTCH CONTROL (Page 3-82).
HARLEY LUBE          94968-09                                               Consumable: HARLEY LUBE (94968-09)
ANTI-SEIZE           98960-97
LUBRICANT                                                         5.        Chain: Lubricate chain using O-ring chain compatible
SPECIAL               99857-97A                                             lubricant per instructions on container.
PURPOSE
GREASE                                                            6.        Center stand: Lubricate spring hooks and mounting bolts.
                                                                            See CENTER STAND (Page 3-111).
See Figure 2-8. for general location of lubrication points.                 Consumable: ANTI-SEIZE LUBRICANT (98960-97)
1.    Front brake hand lever: Use grease on front brake lever     7.        Jiffy stand: See INSPECT AND LUBRICATE JIFFY
      pivot screw. See FRONT BRAKE MASTER CYLINDER                          STAND (Page 2-26).
      (Page 3-29).
                                                                            Consumable: ANTI-SEIZE LUBRICANT (98960-97)
2.    Steering head bearings: Lubricate steering head
      bearings. See ADJUST AND LUBRICATE STEERING
      HEAD BEARINGS (Page 2-21).

      1.   Front brake hand lever                                      5.      Chain
      2.   Steering head bearings                                      6.      Center stand
      3.   Clutch cable                                                7.      Jiffy stand
      4.   Clutch hand lever

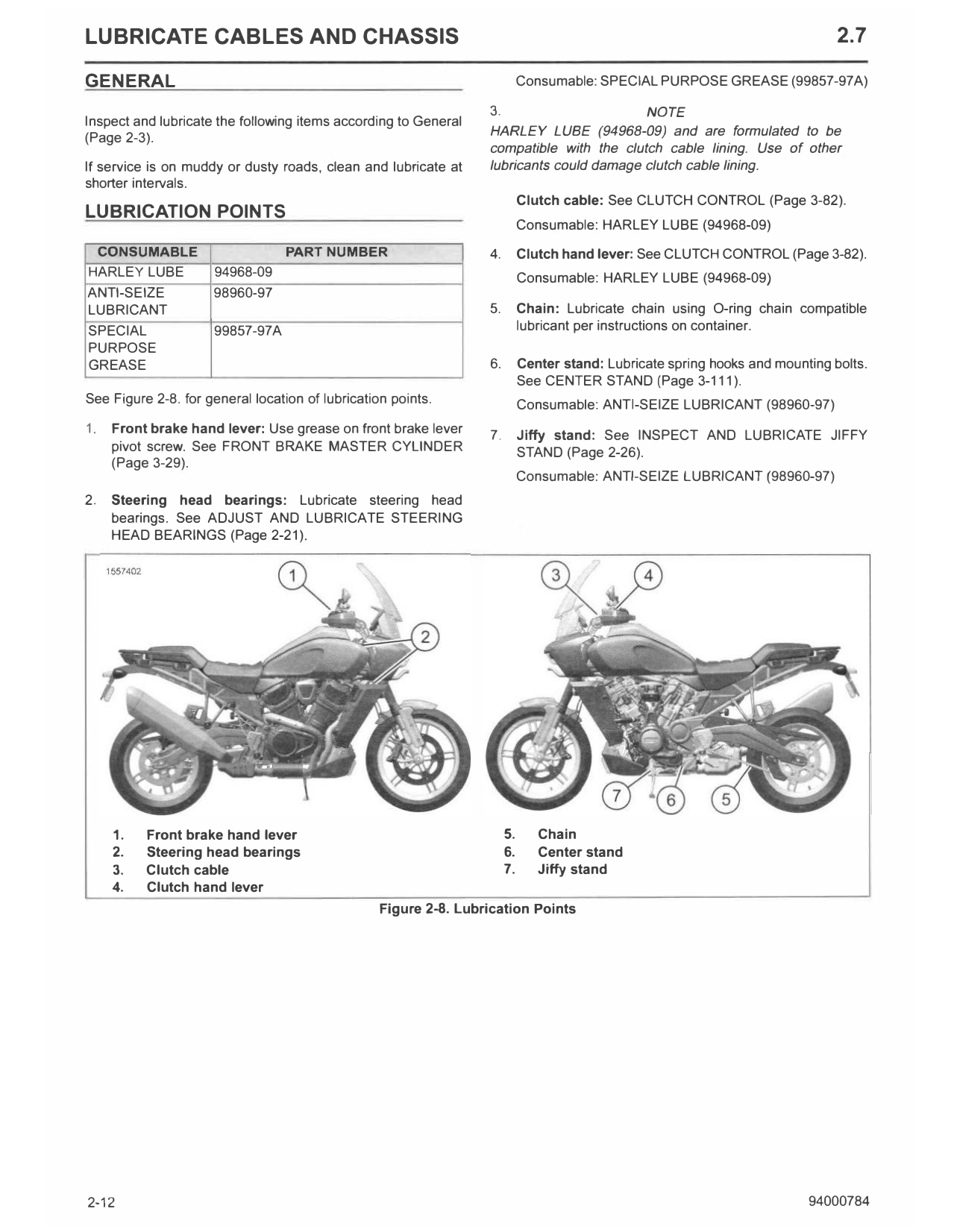

                                                  Figure 2-8. Lubrication Points
