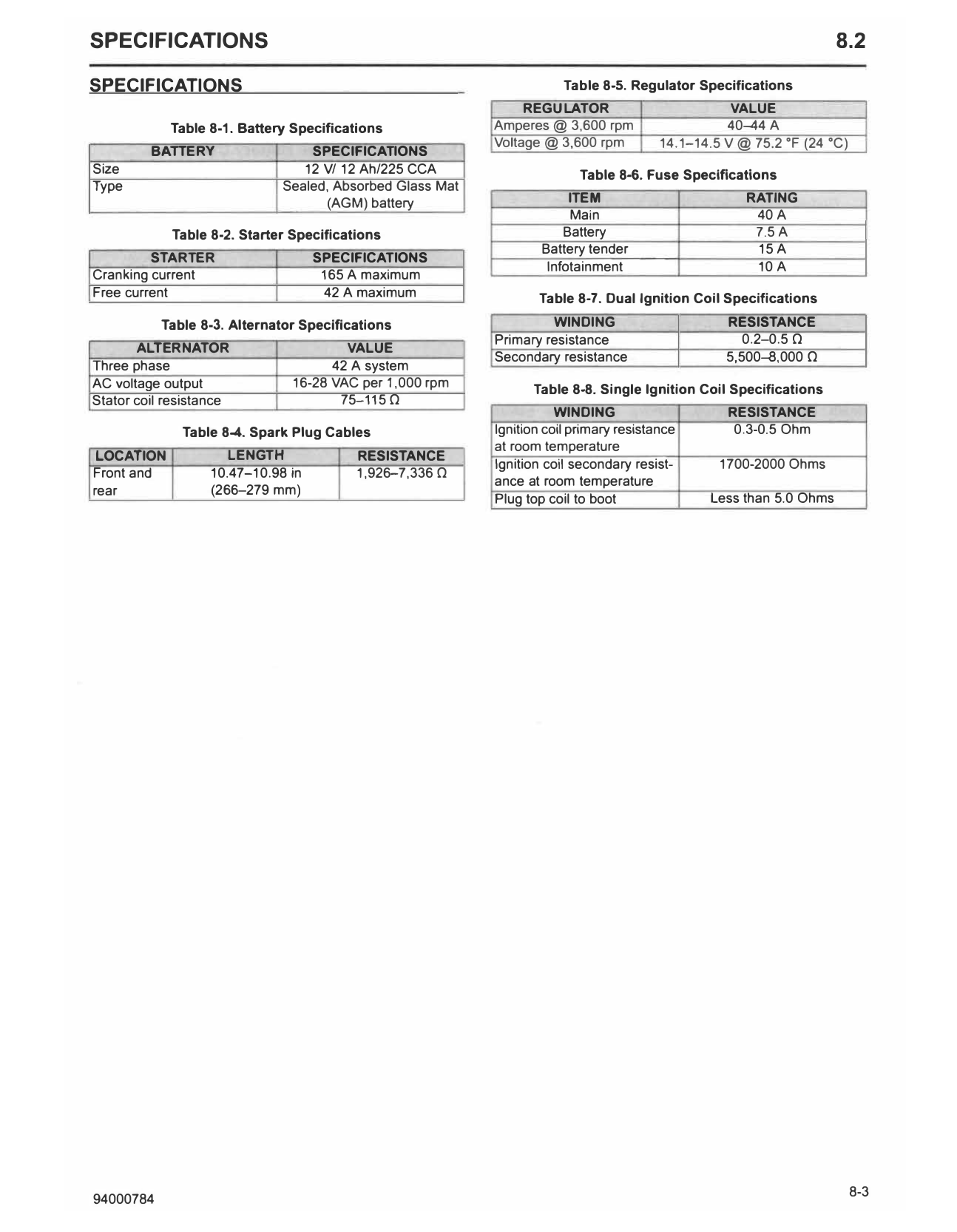

8.2 Specifications

SPECIFICATIONS                                                                                                       8.2
SPECIFICATIONS                                                          Table 8-5. Regulator Specifications
                                                                 REGULATOR                          VALUE
            Table 8-1. Battery Specifications               Amperes@3,600rpm                        40-44A
                                                            Voltage@3,600rpm             14.1-14.5 V@75.2 °F (24 °C)
         BATTERY                   SPECIFICATIONS
Size                              12 V/ 12Ah/225CCA                        Table 8-6. Fuse Specifications
Type                           Sealed ,Absorbed Glass Mat
                                      (AGM) battery                      ITEM                        RATING
                                                                         Main                          40A
            Table 8-2. Starter Specifications                           Battery                       7.5A
                                                                    Battery tender                     15A
         STARTER                     SPECIFICATIONS
                                                                     Infotainment                      10A
Cranking current                      165A maximum
Free current                           42A maximum                  Table 8-7. Dual I gnition Coil Specifications
           Table 8-3. Alternator Specifications                       WINDING                     RESISTANCE
                                                            Primary resistance                       0.2-0.5 0
        ALT ERNATOR                       VALUE
                                                            Secondary resistance                  5,500--8,000 0
Three phase                             42A system
AC voltage output                16-28 VAC per 1,000rpm            Table 8-8. Single Ignition Coil Specifications
Stator coil resistance                   75-115 0
                                                                       WINDING                    RESISTANCE
              Table 8-4. Spark Plug Cables                  Ignition coil primary resistance       0.3-0.5 Ohm
                                                            at room temperature
 LOCATION             LENGTH              RESISTANCE
                                                            Ignition coil secondary resist-      1700-2000 Ohms
Front and           10.47-10.98 in        1,926-7,336 0
                                                            ance at room temperature
rear               ( 266-279mm)
                                                            Plug top coil to boot               Less than 5.0 Ohms
