6.18 Twist Grip Sensor {Tgs)

TWIST GRIP SENSOR {TGS)                                                                                         6.18

PREPARE

1.   Remove main fuse.        See    POWER    DISCONNECT
     (Page 8-4).

2.   Remove right hand grip. See HAND GRIPS (Page 3-97).

3.   Remove RHCM. See RIGHT HAND CONTROL MODULE
     (RHCM) (Page 8-22).

REMOVE

1.   See Figure 6-29. Remove TGS.

     a.   Remove screws (1).

     b.   Remove TGS (2) from RHCM (3).

INSTALL

       FASTENER                         TORQUE VALUE            1.   Screw (2)
TGS screws                           4 in-lbs    0.4 N·m        2.   TGS
                                                                3.   RHCM
1.   See Figure 6-29. Install TGS.

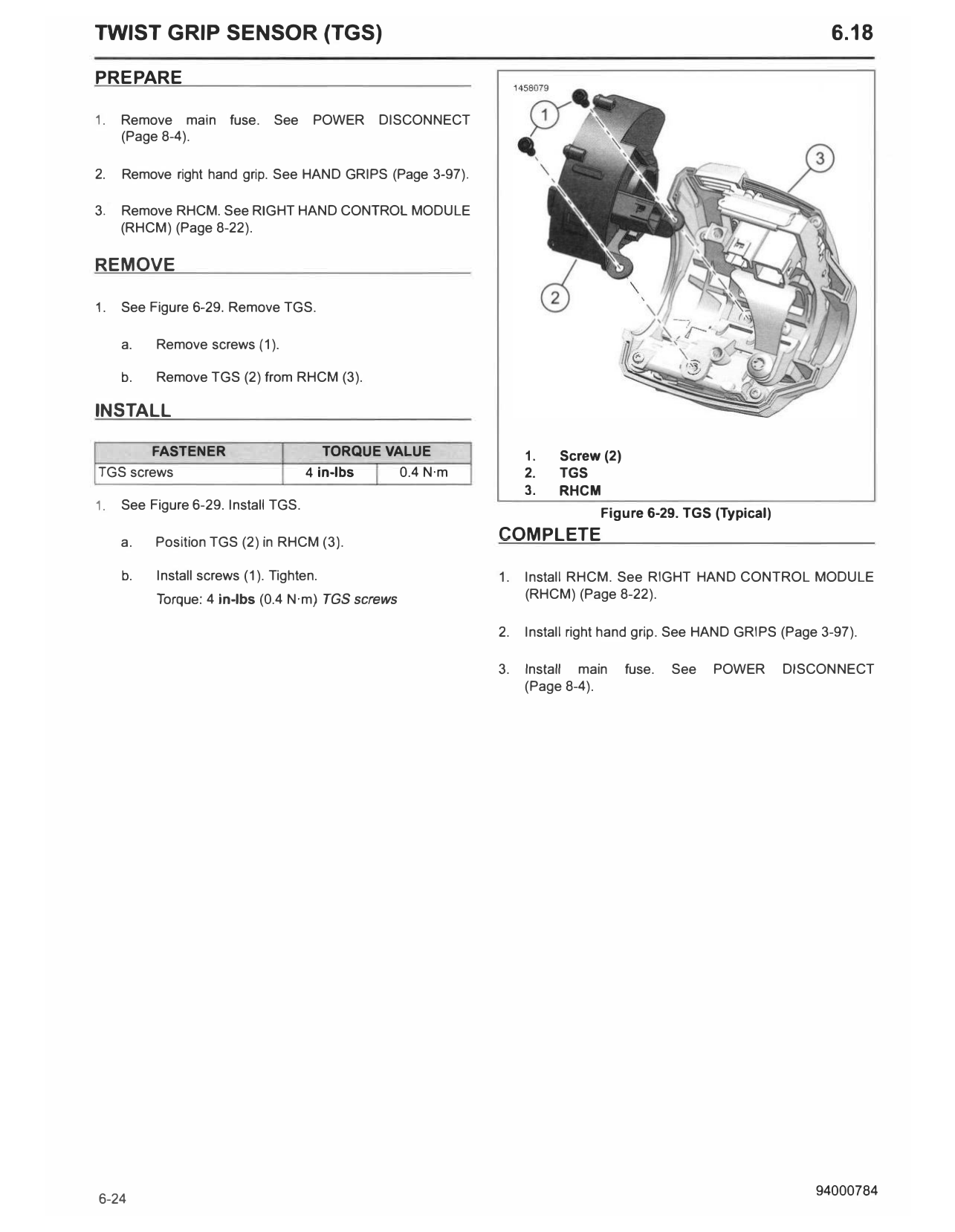

                                                                           Figure 6-29. TGS (Typical)

     a.   Position TGS (2) in RHCM (3).                    COMPLETE

     b.   Install screws (1). Tighten.                     1.   Install RHCM. See RIGHT HAND CONTROL MODULE
          Torque: 4 in-lbs (0.4 N·m) TGS screws                 (RHCM) (Page 8-22).

                                                           2.   Install right hand grip. See HAND GRIPS (Page 3-97).

                                                           3.   Install main     fuse.   See   POWER    DISCONNECT
                                                                (Page 8-4).
