6.16 Intake Air Temperature (Iat) Sensor

INTAKE AIR TEMPERATURE (IAT) SENSOR                                                                                       6.16

PREPARE                                                          INSTALL

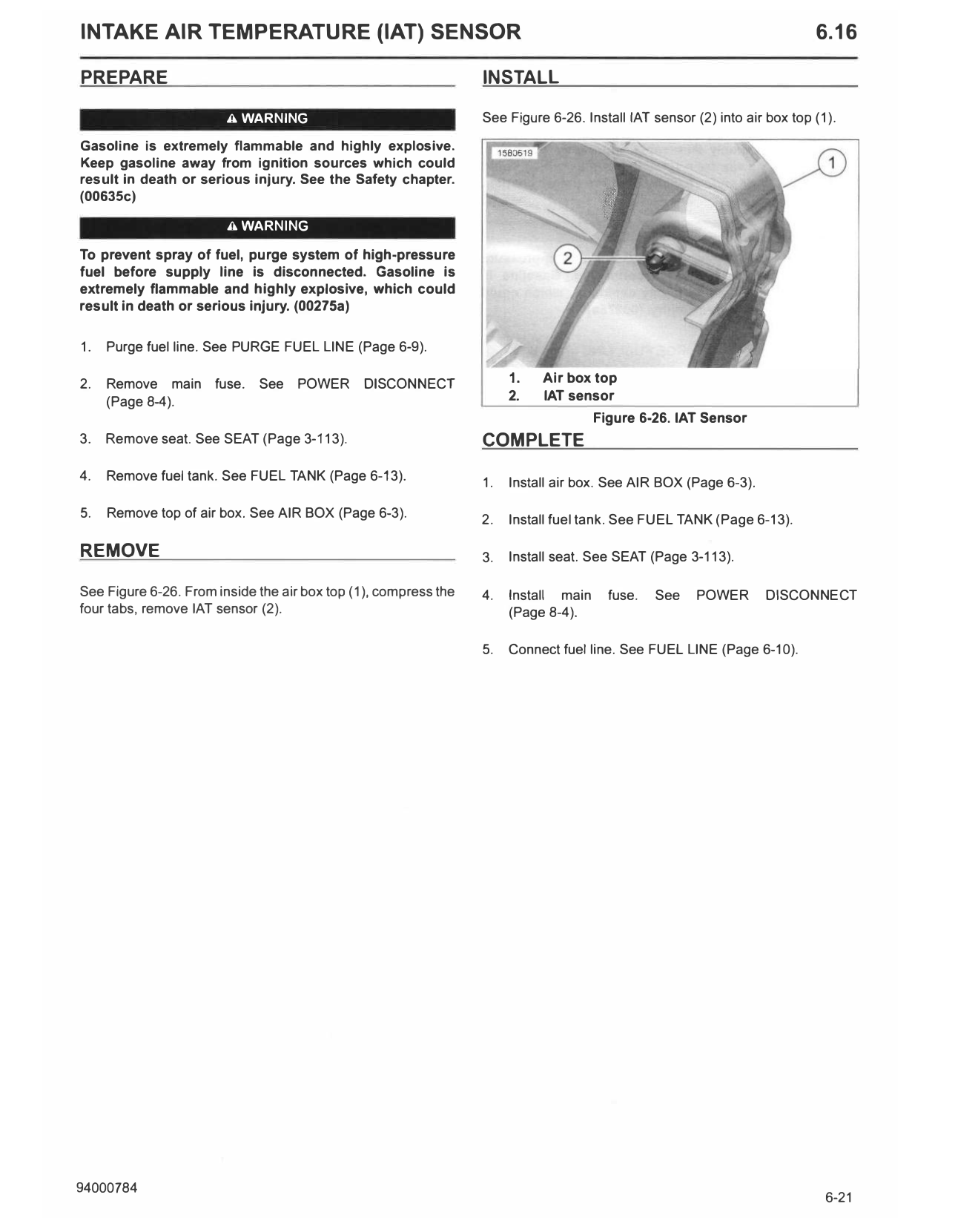

                        A WARNING                                See Figure 6-26. Install lAT sensor (2) into air box top (1).

Gasoline is extremely flammable and highly explosive.
Keep gasoline away from ignition sources which could
result in death or serious injury. See the Safety chapter.
(00635c)

                        A WARNING

To prevent spray of fuel, purge system of high-pressure
fuel before supply line is disconnected. Gasoline is
extremely flammable and highly explosive, which could
result in death or serious injury. (00275a)

1.   Purge fuel line. See PURGE FUEL LINE (Page 6-9).

2.   Remove main fuse.       See POWER         DISCONNECT             1.   Air box top
     (Page 8-4).                                                      2.   IAT sensor
                                                                                     Figure 6-26. IAT Sensor
3.   Remove seat. See SEAT (Page 3-113).                         COMPLETE
4.   Remove fuel tank. See FUEL TANK (Page 6-13).                1.   Install air box. See AIR BOX (Page 6-3).

5.   Remove top of air box. See AIR BOX (Page 6-3).              2.   Install fuel tank. See FUEL TANK (Page 6-13).

REMOVE                                                           3.   Install seat. See SEAT (Page 3-113).

See Figure 6-26. From inside the air box top (1), compress the   4.   Install main     fuse.   See   POWER       DISCONNECT
four tabs, remove IAT sensor (2).                                     (Page 8-4).

                                                                 5.   Connect fuel line. See FUEL LINE (Page 6-10).
