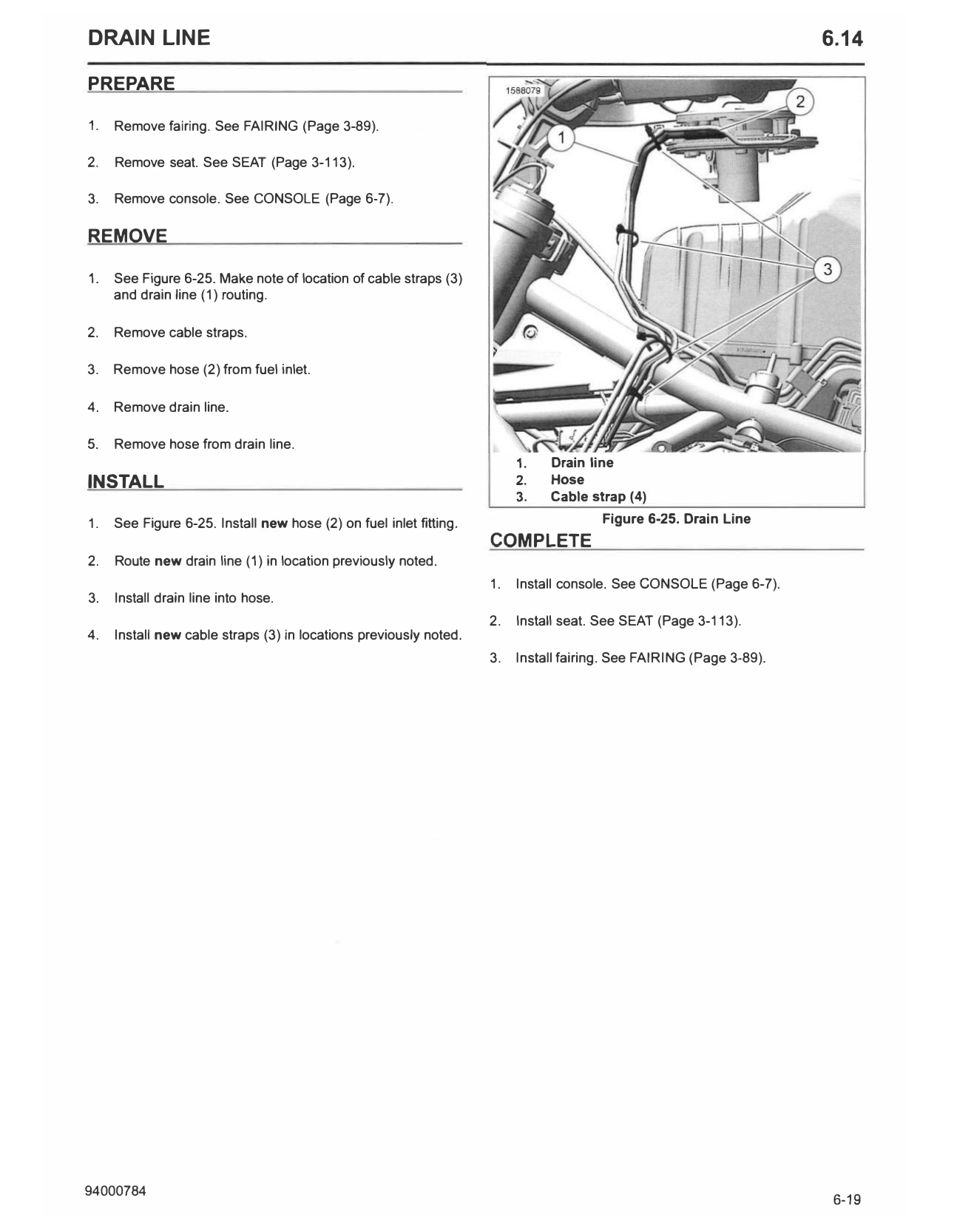

6.14 Drain Line

DRAIN LINE                                                                                                           6.14

PREPARE

1.   Remove fairing. See FAIRING (Page 3-89).

2.   Remove seat. See SEAT (Page 3-113).

3.   Remove console. See CONSOLE (Page 6-7).

REMOVE

1.   See Figure 6-25. Make note of location of cable straps (3)
     and drain line (1) routing.

2.   Remove cable straps.

3.   Remove hose (2) from fuel inlet.

4.   Remove drain line.

5.   Remove hose from drain line.
                                                                         1.   Drain line
INSTALL                                                                  2.   Hose
                                                                         3.   Cable strap (4)
1.   See Figure 6-25. Install new hose (2) on fuel inlet fitting.                      Figure 6-25. Drain Line
                                                                    COMPLETE
2.   Route new drain line (1) in location previously noted.
                                                                    1.   Install console. See CONSOLE (Page 6-7).
3.   Install drain line into hose.
                                                                    2.   Install seat. See SEAT (Page 3-113).
4.   Install new cable straps (3) in locations previously noted.
                                                                    3.   Install fairing. See FAIRING (Page 3-89).
