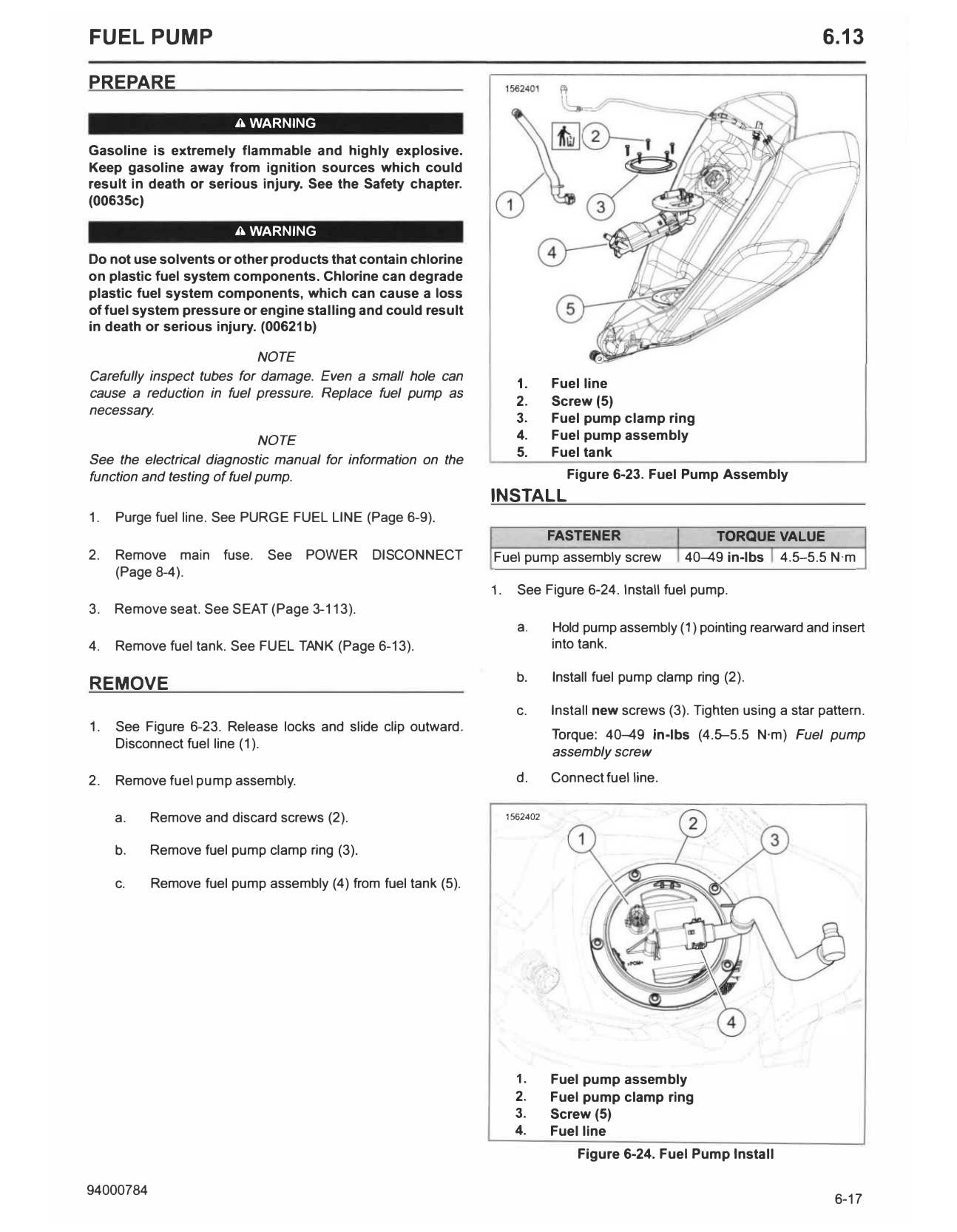

6.13 Fuel Pump

FUEL PUMP                                                                                                                  6.13

PREPARE

                        A WARNING
Gasoline is extremely flammable and highly explosive.
Keep gasoline away from ignition sources which could
result in death or serious injury. See the Safety chapter.
(00635c)

                        A WARNING

Do not use solvents or other products that contain chlorine
on plastic fuel system components. Chlorine can degrade
plastic fuel system components, which can cause a loss
of fuel system pressure or engine stalling and could result
in death or serious injury. (00621 b)

                           NOTE
Carefully inspect tubes for damage. Even a small hole can
                                                                      1.      Fuel line
cause a reduction in fuel pressure. Replace fuel pump as
                                                                      2.      Screw (5)
necessary
                                                                      3.      Fuel pump clamp ring
                            NOTE                                      4.      Fuel pump assembly
                                                                      5.      Fuel tank
See the electrical diagnostic manual for information on the
function and testing offuel pump.                                                 Figure 6-23. Fuel Pump Assembly
                                                               INSTALL
1.   Purge fuel line. See PURGE FUEL LINE (Page 6-9).
                                                                              FASTENER                  TORQUE VALUE
2.   Remove main fuse.       See POWER        DISCONNECT       Fuel pump assembly screw             40-49 in-lbs 4.5---5.5 N·m
     (Page 8-4).
                                                               1.     See Figure 6-24. Install fuel pump.
3.   Remove seat. See SEAT (Page 3-113).
                                                                      a.      Hold pump assembly (1) pointing rearward and insert
4.   Remove fuel tank. See FUEL TANK (Page 6-13).                             into tank.

                                                                      b.      Install fuel pump clamp ring (2).
REMOVE
                                                                      c.      Install new screws (3). Tighten using a star pattern.
1.   See Figure 6-23. Release locks and slide clip outward.
                                                                              Torque: 40-49 in-lbs (4.5---5.5 N·m) Fuel pump
     Disconnect fuel line (1).
                                                                              assembly screw

2.   Remove fuel pump assembly.                                       d.      Connect fuel line.

     a.    Remove and discard screws (2).                           1562402

     b.    Remove fuel pump clamp ring (3).

     c.    Remove fuel pump assembly (4) from fuel tank (5).

                                                                              )

                                                                     1.       Fuel pump assembly
                                                                     2.       Fuel pump clamp ring
                                                                     3.       Screw (5)
                                                                     4.       Fuel line
                                                                                   Figure 6-24. Fuel Pump Install

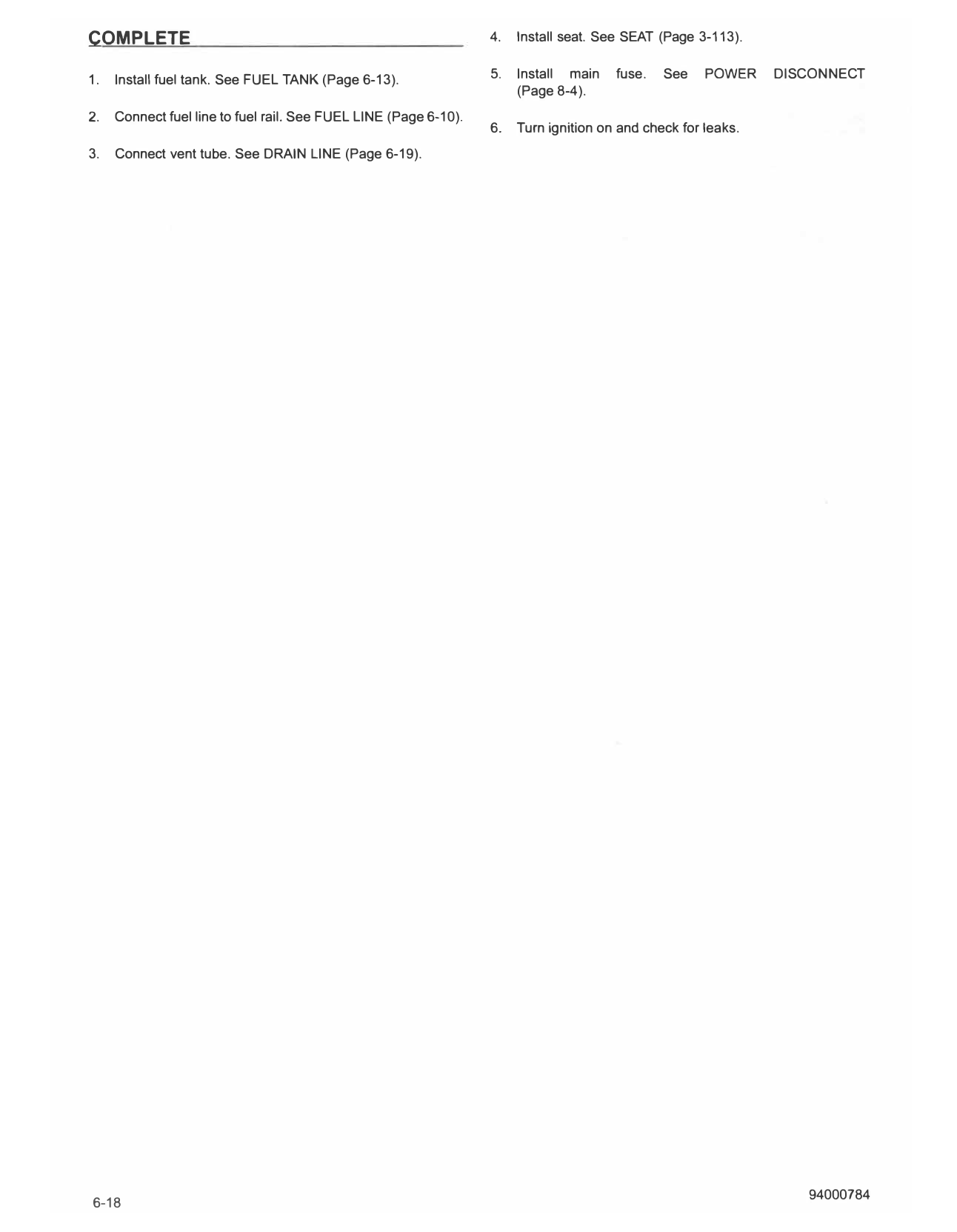

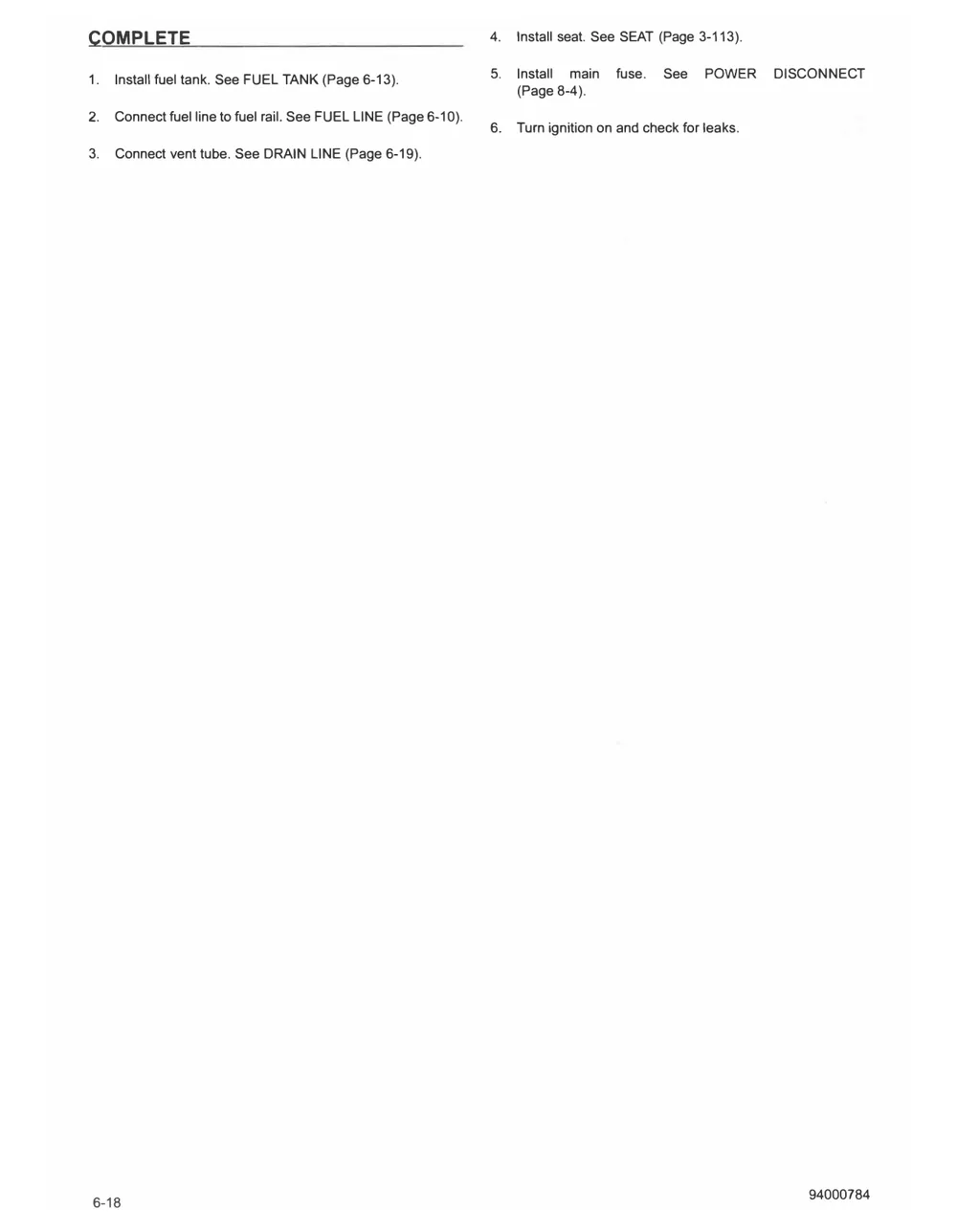

COMPLETE                                                          4.   Install seat. See SEAT (Page 3-113).

1.   Install fuel tank. See FUEL TANK (Page 6-13).                5.   Install main    fuse.   See    POWER    DISCONNECT
                                                                       (Page 8-4).
2.   Connect fuel line to fuel rail. See FUEL LINE (Page 6-10).
                                                                  6.   Turn ignition on and check for leaks.
3.   Connect vent tube. See DRAIN LINE (Page 6-19).
