5.4 Drive Chain

DRIVE CHAIN                                                                                                                 5.4

PREPARE

1.   Disconnect negative battery       cable.   See    POWER
     DISCONNECT (Page 8-4).

2.   Remove chain guards. See CHAIN GUARDS (Page 3-76).

     a.   Remove upper chain guard.

     b.   Remove transmission sprocket cover.

3.   Remove left side rider footpeg bracket. See RIDER
     FOOTRESTS (Page 3-104).

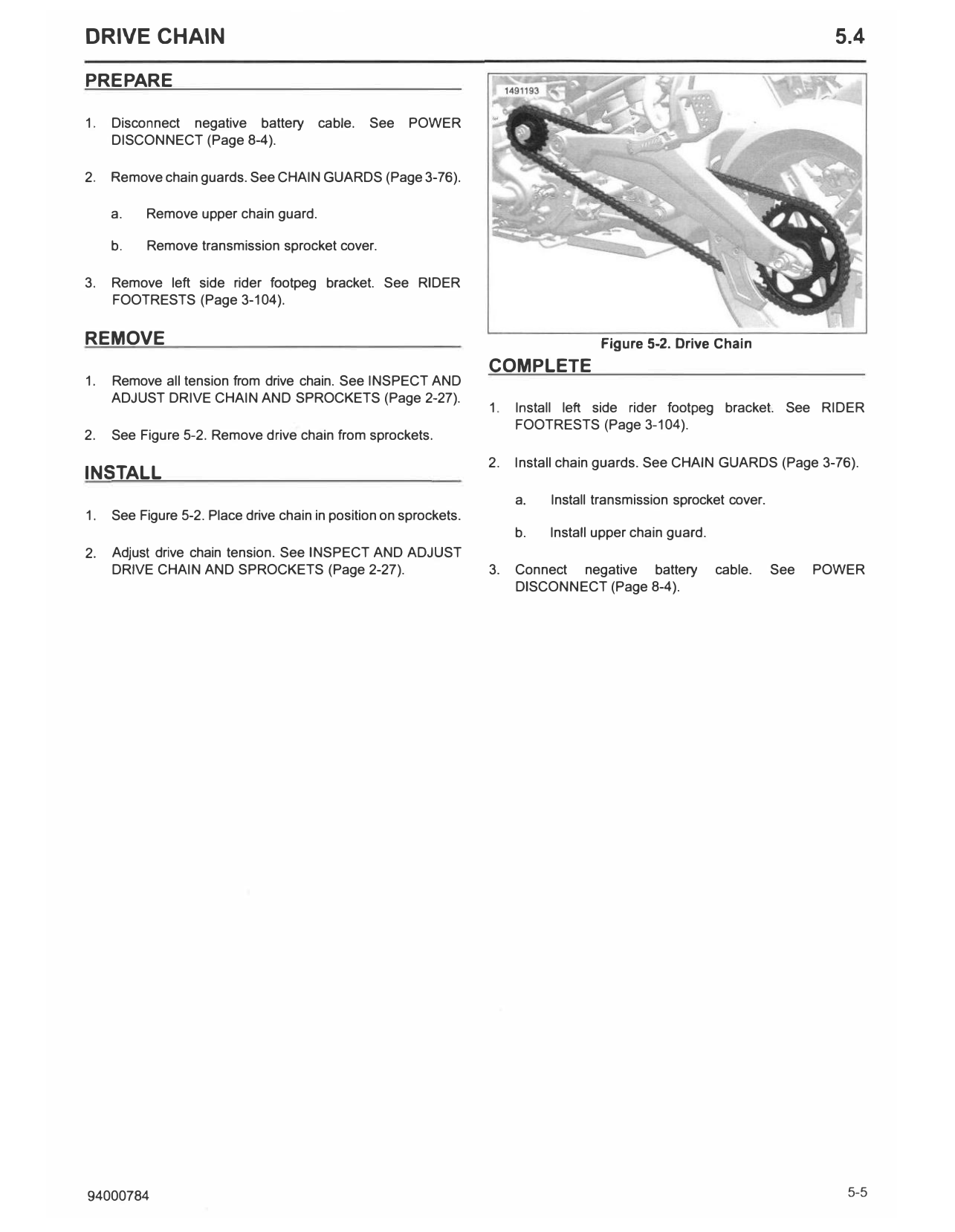

REMOVE                                                                               Figure 5-2. Drive Chain
                                                                   COMPLETE
1.   Remove all tension from drive chain. See INSPECT AND
     ADJUST DRIVE CHAIN AND SPROCKETS (Page 2-27).
                                                                   1.   Install left side rider footpeg bracket. See RIDER
                                                                        FOOTRESTS (Page 3-104).
2.   See Figure 5-2. Remove drive chain from sprockets.
                                                                   2.   Install chain guards. See CHAIN GUARDS (Page 3-76).
INSTALL
                                                                        a.   Install transmission sprocket cover.
1.   See Figure 5-2. Place drive chain in position on sprockets.
                                                                        b.   Install upper chain guard.
2.   Adjust drive chain tension. See INSPECT AND ADJUST
     DRIVE CHAIN AND SPROCKETS (Page 2-27).                        3.   Connect negative battery          cable.    See   POWER
                                                                        DISCONNECT (Page 8-4).
