4.13 Camshaft Covers

CAMSHAFT COVERS                                                                                                      4.13
PREPARE                                                             1400884

1.   Remove main fuse. See POWER               DISCONNECT
     (Page 8-4).

REMOVE

1.   See Figure 4-16. Remove screws (4).

2.   Remove camshaft cover (3).

3.   Remove and discard gasket (2).

INSTALL

         FASTENER                TORQUE VALUE
Cylinder head camshaft cover 63-77 in-lbs 7.1-8.7 N·m                 1.      Cylinder head
                                         ,
screws                                                                2.      Gasket
                                                                      3.      Cam cover
1.   See Figure 4-16. Clean grove in camshaft cover (3) from          4.      Screw (4)
     all residual oil and debris.

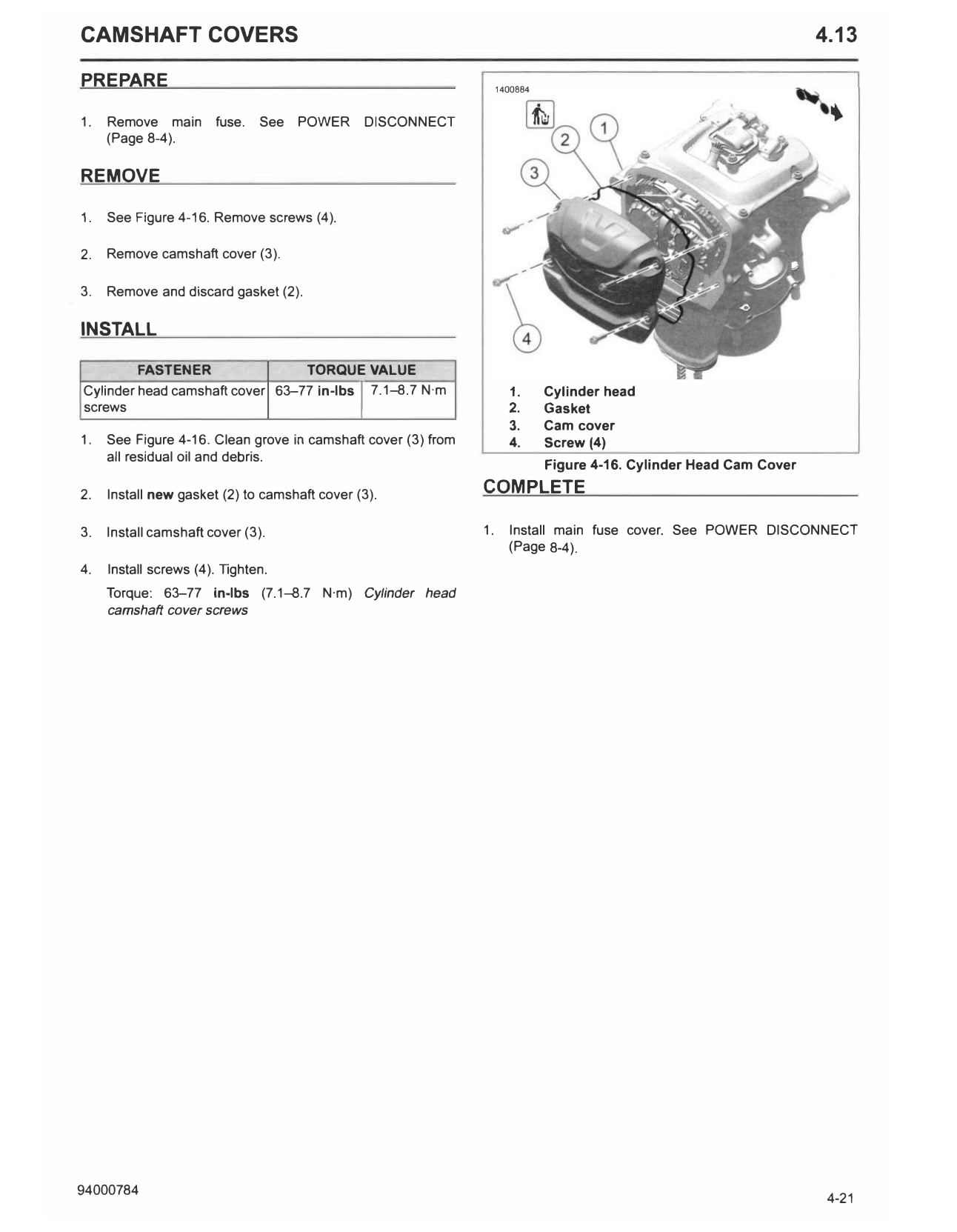

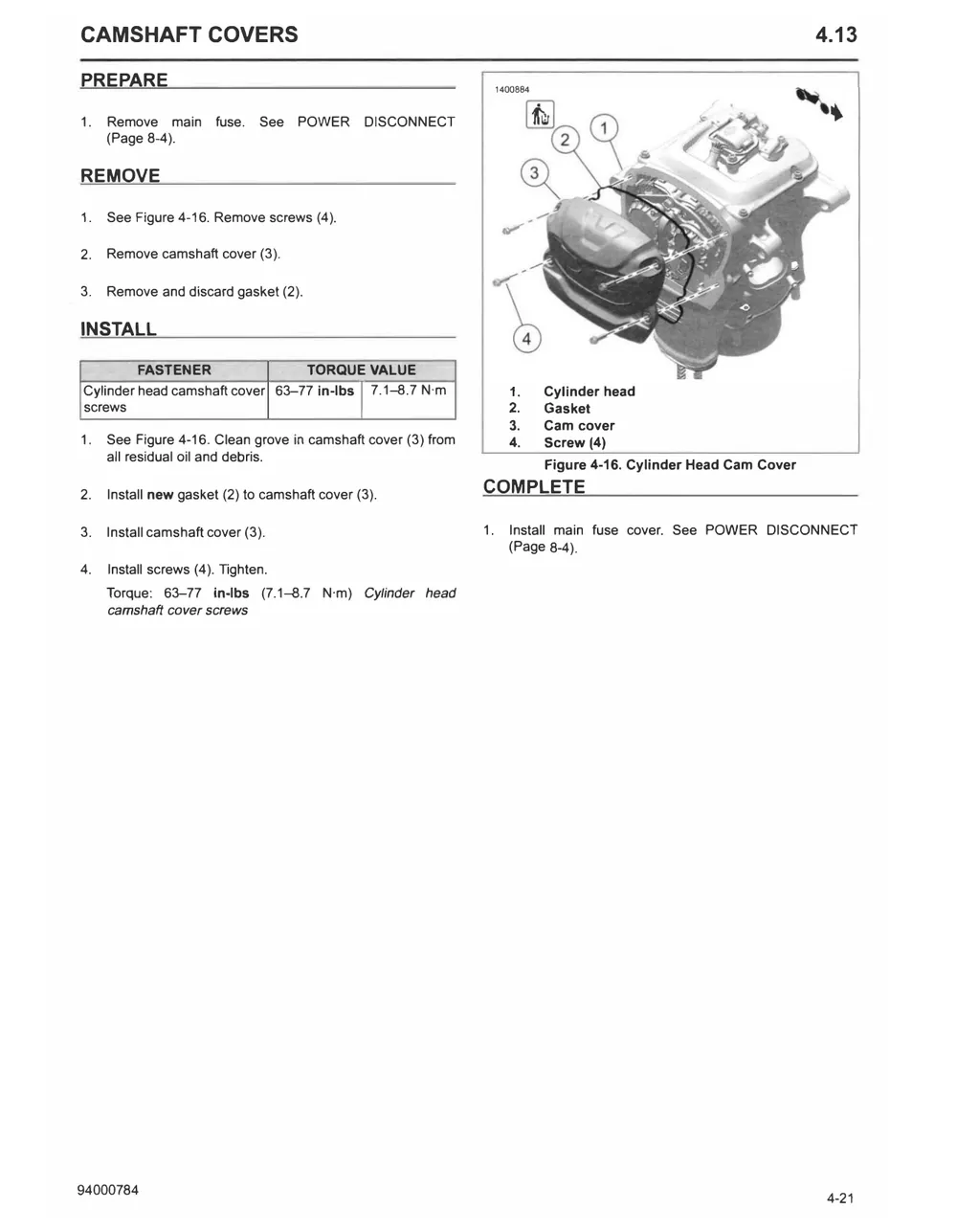

                                                                              Figure 4-16. Cylinder Head Cam Cover

2.   Install new gasket (2) to camshaft cover (3).             COMPLETE

3.   Install camshaft cover (3).                               1.     Install main fuse cover. See POWER DISCONNECT
                                                                      (Page 8-4).
4.   Install screws (4). Tighten.
     Torque: 63-77 in-lbs (7.1-8.7 N·m) Cylinder head
     camshaft cover screws
