3.36 Handlebar Wind Deflectors

HANDLEBAR WIND DEFLECTORS                                                                                        3.36

REMOVE                                                     4.   Install screws (4). Tighten.
                                                                Torque: 65-72 in-lbs (7.3-8.1 N·m) Deflector to mount
1.     See Figure 3-120. Remove screws (4).                     screws

2.     Remove deflector (3).

3.     Remove screws (1).

4.     Remove mount (5).

INSTALL

         FASTENER                TORQUE VALUE
Deflector mount to handlebar 62-80 in-lbs   7-9 N·m
screws
Deflector to mount screws    65-72 in-lbs 7.3-8.1 N·m

1.     See Figure 3-120. Install mount (5).

2.     Install screws (1). Tighten.
                                                                1.    Screw (2)
       Torque: 62-80 in-lbs (7-9 N·m) Deflector mount to        2.    End cap
       handlebar screws                                         3.    Deflector
                                                                4.    Screw (2)
3.     Slide deflector (3) into position on end cap (2).        5.    Mount

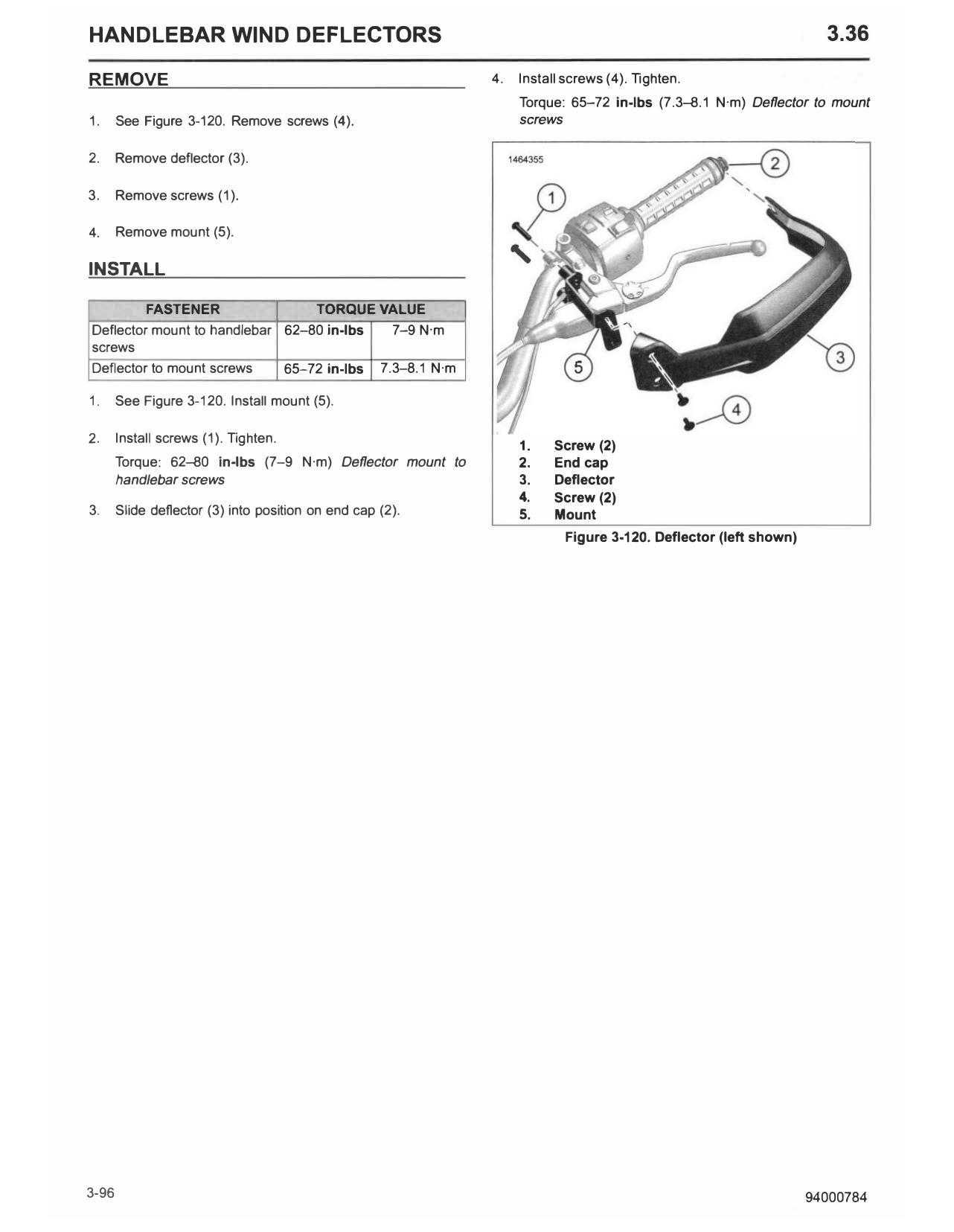

                                                                        Figure 3-120. Deflector (left shown)

3-96                                                                                                           94000784
