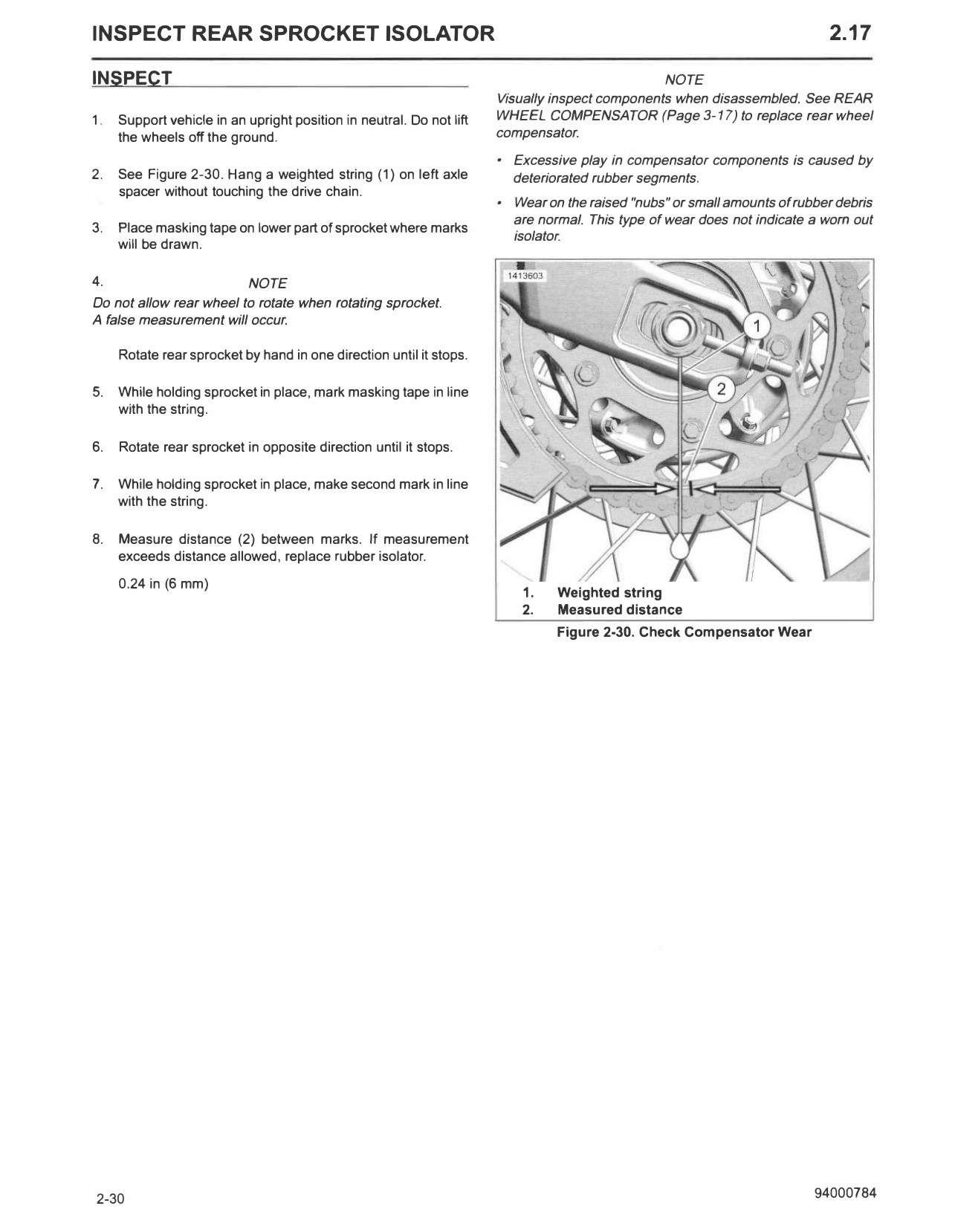

2.17 Inspect Rear Sprocket Isolator

INSPECT REAR SPROCKET ISOLATOR                                                                                               2.17

INSPECT                                                                                         NOTE
                                                                      Visually inspect components when disassembled. See REAR
1.   Support vehicle in an upright position in neutral. Do not lift   WHEEL COMPENSATOR (Page 3-17) to replace rear wheel
     the wheels off the ground.                                       compensator.

                                                                      •   Excessive play in compensator components is caused by
2.   See Figure 2-30. Hang a weighted string (1) on left axle             deteriorated rubber segments.
     spacer without touching the drive chain.
                                                                      •   Wear on the raised "nubs" or small amounts of rubber debris
                                                                          are normal. This type of wear does not indicate a worn out
3.   Place masking tape on lower part of sprocket where marks
                                                                          isolator.
     will be drawn.

4.                       NOTE
Do not allow rear wheel to rotate when rotating sprocket.
A false measurement will occur.

     Rotate rear sprocket by hand in one direction until it stops.

5.   While holding sprocket in place, mark masking tape in line
     with the string.

6.   Rotate rear sprocket in opposite direction until it stops.

7.   While holding sprocket in place, make second mark in line
     with the string.

8.   Measure distance (2) between marks. If measurement
     exceeds distance allowed, replace rubber isolator.

     0.24 in (6 mm)
                                                                           1.    Weighted string
                                                                           2.    Measured distance
                                                                                 Figure 2-30. Check Compensator Wear

2-30                                                                                                                       94000784
