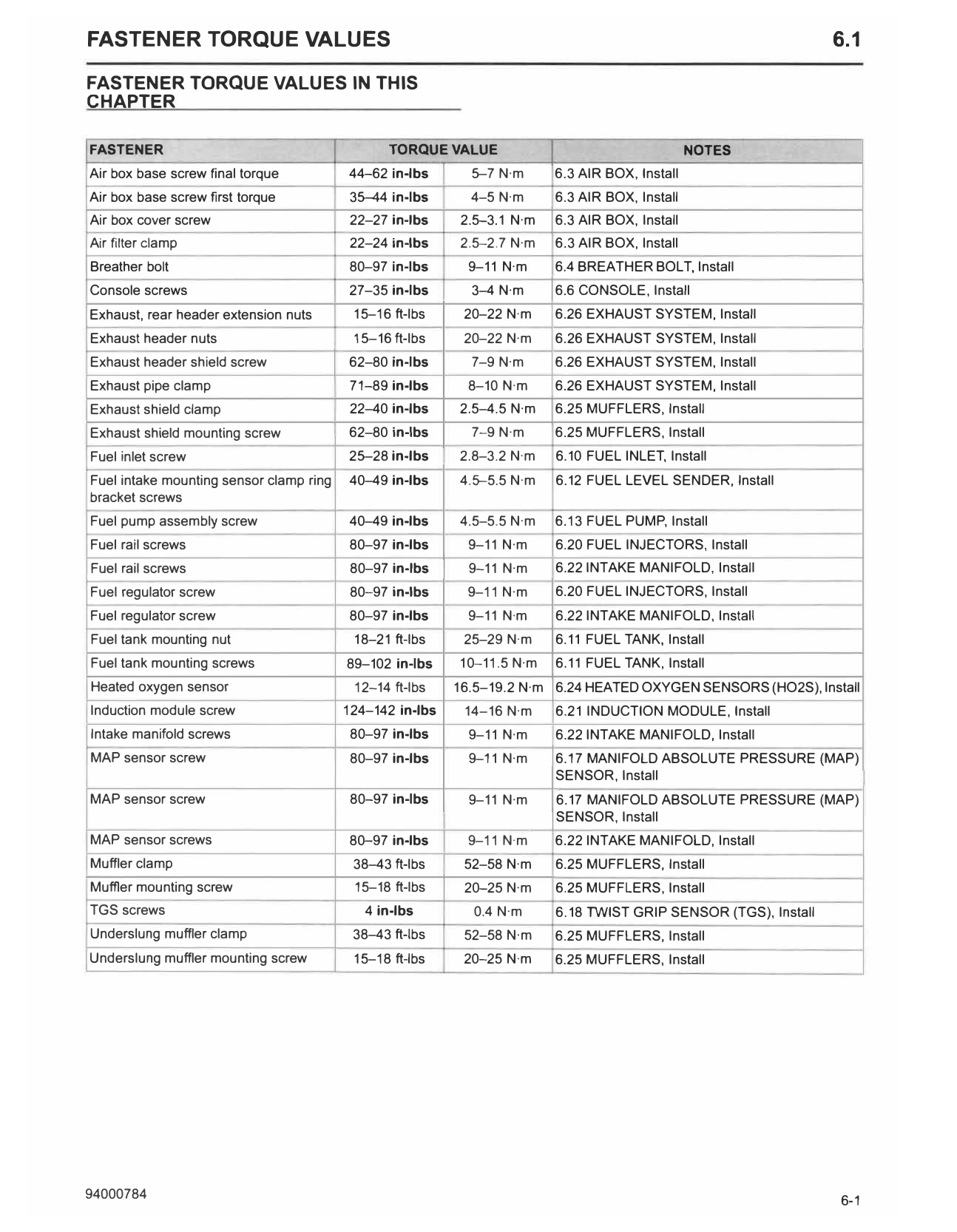

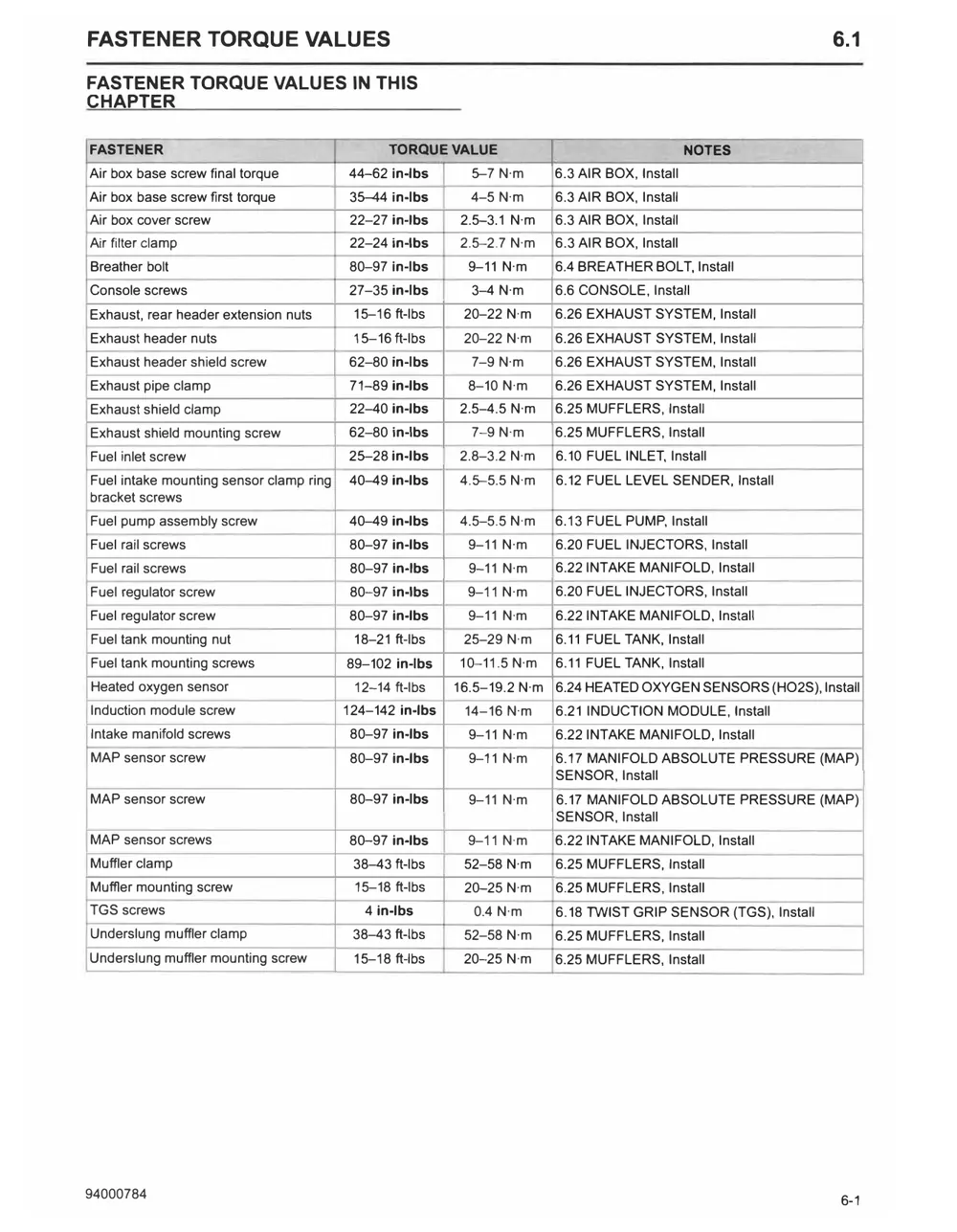

6.1 Fastener Torque Values

FASTENER TORQUE VALUES                                                                                           6.1
FASTENER TORQUE VALUES IN THIS
CHAPTER

FASTENER                                       TORQUE VALUE                                     NOTES
Air box base screw final torque          44-62 in-lbs       5-7 N·m      6.3 AIR BOX, Install
Air box base screw first torque           35-44 in-lbs      4-5 N·m      6.3 AIR BOX, Install
Air box cover screw                       22-27 in-lbs     2.5-3.1 N·m   6.3 AIR BOX, Install
Air filter clamp                          22-24 in-lbs     2.5-2.7 N·m   6.3 AIR BOX, Install
Breather bolt                             80-97 in-lbs      9-11 N·m     6.4 BREATHER BOLT, Install
Console screws                            27-35 in-lbs      3-4 N·m      6.6 CONSOLE, Install
Exhaust, rear header extension nuts       15-16 ft-lbs     20-22 N·m     6.26 EXHAUST SYSTEM, Install
Exhaust header nuts                       15-16 ft-lbs     20-22 N·m     6.26 EXHAUST SYSTEM, Install
Exhaust header shield screw               62-80 in-lbs      7-9 N·m      6.26 EXHAUST SYSTEM , Install
Exhaust pipe clamp                        71-89 in-lbs      8-10 N·m     6.26 EXHAUST SYSTEM, Install
Exhaust shield clamp                      22-40 in-tbs    2.5-4.5 N·m    6.25 MUFFLERS, Install
Exhaust shield mounting screw             62-80 in-lbs      7-9 N·m      6.25 MUFFLERS, Install
Fuel inlet screw                         25-28 in-lbs     2.8-3.2 N·m    6.10 FUEL INLET, Install
Fuel intake mounting sensor clamp ring    40-49 in-lbs     4.5-5.5 N·m   6.12 FUEL LEVEL SENDER, Install
bracket screws
Fuel pump assembly screw                  40-49 in-lbs     4.5-5.5 N·m   6.13 FUEL PUMP, Install
Fuel rail screws                          80-97 in-lbs      9-11 N·m     6.20 FUEL INJECTORS, Install
Fuel rail screws                          80-97 in-tbs      9-11 N·m     6.22 INTAKE MANIFOLD, Install
Fuel regulator screw                      80-97 in-lbs      9-11 N·m     6.20 FUEL INJECTORS, Install
Fuel regulator screw                      80-97 in-lbs      9-11 N·m     6.22 INTAKE MANIFOLD, Install
Fuel tank mounting nut                    18-21 ft-lbs     25-29 N·m     6.11 FUEL TANK, Install
Fuel tank mounting screws                89-102 in-lbs    10-11.5 N·m    6.11 FUEL TANK, Install
Heated oxygen sensor                      12-14 ft-lbs    16.5-19.2 N·m 6.24 HEATED OXYGEN SENSORS (HO2S), Install
Induction module screw                   124-142 in-lbs    14-16 N·m     6.21 INDUCTION MODULE, Install
Intake manifold screws                    80-97 in-lbs      9-11 N·m     6.22 INTAKE MANIFOLD, Install
MAP sensor screw                          80-97 in-lbs      9-11 N·m     6.17 MANIFOLD ABSOLUTE PRESSURE (MAP)
                                                                         SENSOR, Install
MAP sensor screw                          80-97 in-lbs      9-11 N·m     6.17 MANIFOLD ABSOLUTE PRESSURE (MAP)
                                                                         SENSOR, Install
MAP sensor screws                         80-97 in-lbs      9-11 N·m     6.22 INTAKE MANIFOLD, Install
Muffler clamp                             38-43 ft-lbs     52-58 N·m     6.25 MUFFLERS, Install
Muffler mounting screw                    15-18 ft-lbs     20-25 N·m     6.25 MUFFLERS, Install
TGS screws                                  4 in-lbs        0.4 N·m      6.18 TWIST GRIP SENSOR (TGS), Install
Underslung muffler clamp                  38-43 ft-lbs     52-58 N·m     6.25 MUFFLERS, Install
Underslung muffler mounting screw         15-18 ft-lbs     20-25 N·m     6.25 MUFFLERS, Install

94000784                                                                                                         6-1
