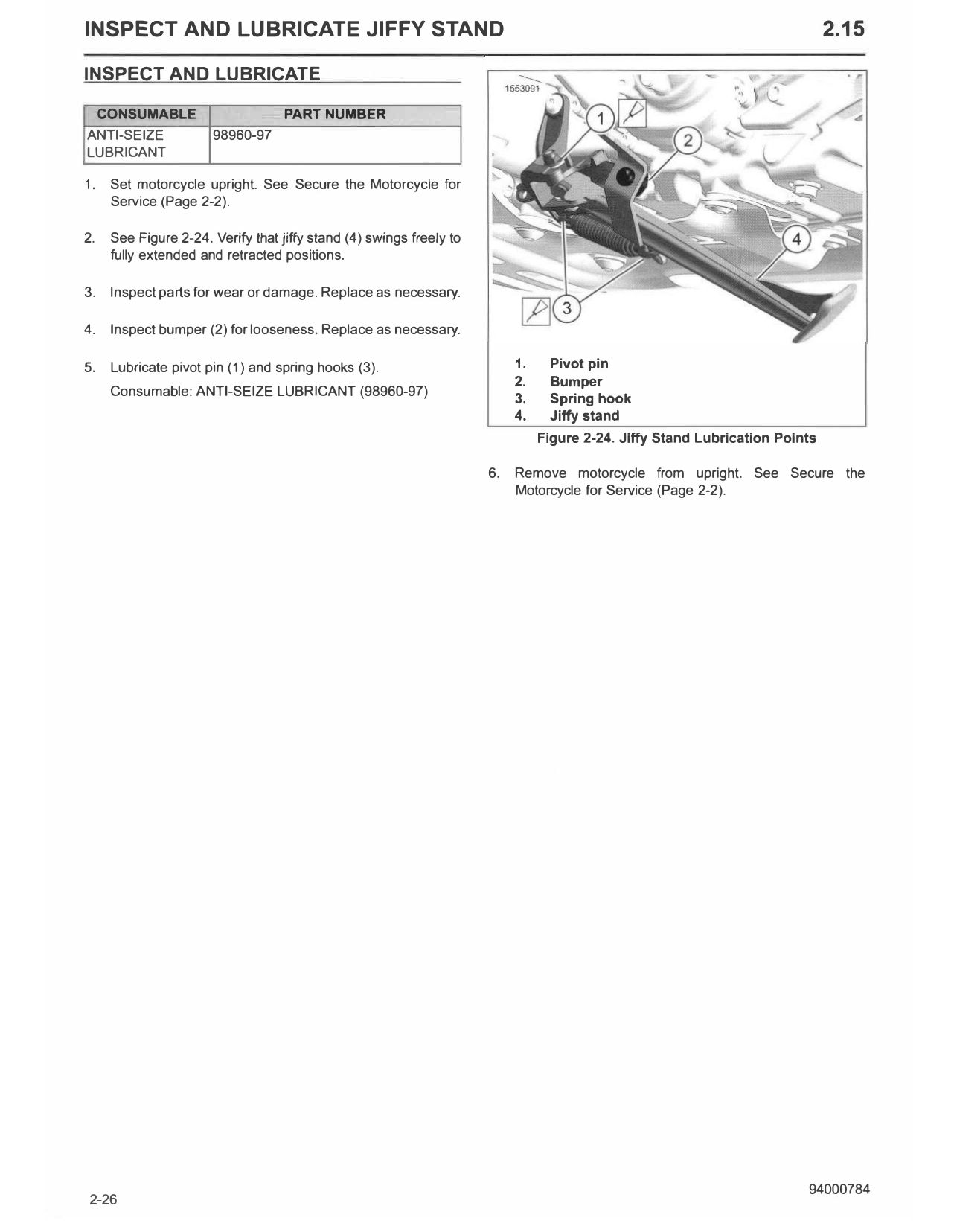

2.15 Inspect And Lubricate Jiffy Stand

INSPECT AND LUBRICATE JIFFY STAND                                                                                            2.15

INSPECT AND LUBRICATE

 CONSUMABLE                        PART NUMBER
ANTI-SEIZE            98960-97
LUBRICANT

1.   Set motorcycle upright. See Secure the Motorcycle for
     Service (Page 2-2).

2.   See Figure 2-24. Verify that jiffy stand (4) swings freely to
     fully extended and retracted positions.

3.   Inspect parts for wear or damage. Replace as necessary.

4.   Inspect bumper (2) for looseness. Replace as necessary.

5.   Lubricate pivot pin (1) and spring hooks (3).                        1.    Pivot pin
                                                                          2.    Bumper
     Consumable: ANTI-SEIZE LUBRICANT (98960-97)
                                                                          3.    Spring hook
                                                                          4.    Jiffy stand
                                                                               Figure 2-24. Jiffy Stand Lubrication Points

                                                                     6.   Remove motorcycle from upright. See Secure the
                                                                          Motorcycle for Service (Page 2-2).
